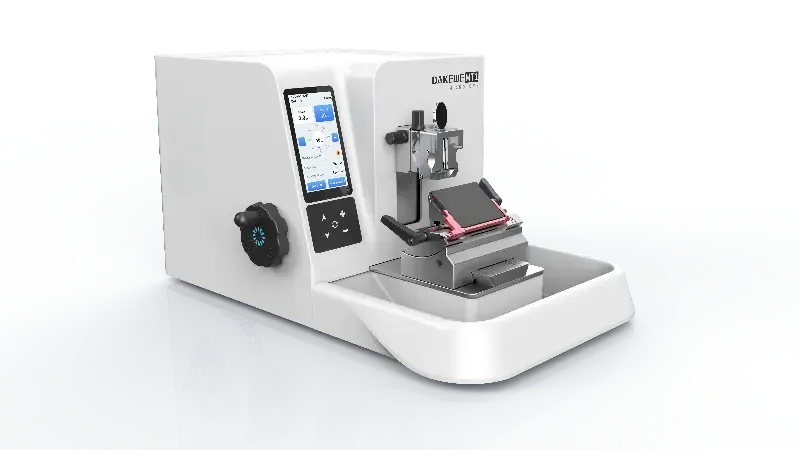

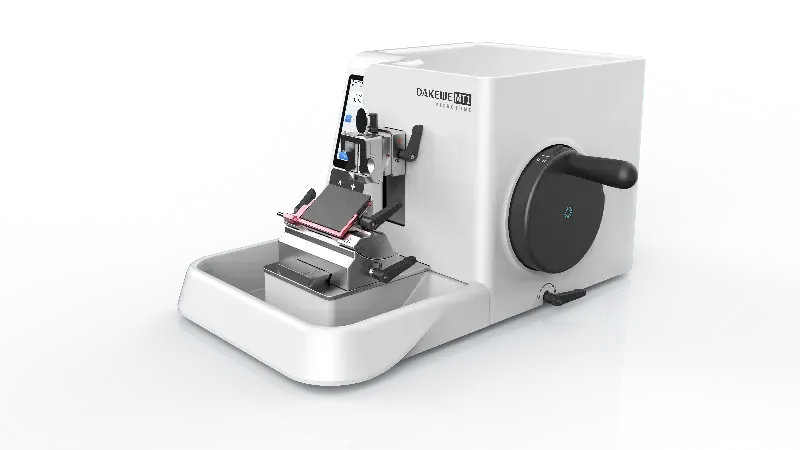

The Dakewe MT1 is an FDA-approved, CE-IVD certified lab instrument designed for high-precision sectioning of wax-embedded specimens in pathology and histology. It features an ergonomic design, motorized movement, and a 5-inch color touchscreen for intuitive control.
Fast specimen alignment — Patented 0 position indicator with clear graduation and pleasant motion feedback enables fast alignment of the specimens.
Steady moment — Motorized system offers steady and even-speed movement.
Sectioning you can feel — The coarse feed wheel provides precise tactile feedback with every rotation, giving you enhanced control and a deeper connection to the sectioning process for consistently superior results.
Minimized fatigue — Smooth and light hand wheel thanks to expertly designed force balance system.
Thumb design on the hand wheel for the thumb to rest on amid heavy workload.
Easy-to-clean waste tray — Large volume, removable waste tray with slope interior allows for effortless cleaning.
Rounded corner in every corner — Rounded corner in every corner protects laboratory technicians.
Bottom glider makes cleaning easier.
Position memory — Position memory function brings specimen head to the desired position in one touch.
3-in-1 coarse feed wheel — 3-in-1 coarse feed wheel with reversible wheel direction adapts to the microtomists' preference.
Rocking mode — Sensitive rocking mode allows trimming without a full rotation of handwheel, reducing fatigue.
Touch screen — Modify all parameters intuitively on the touch screen.
Control panel — Move specimen head easily with the built-in control panel.

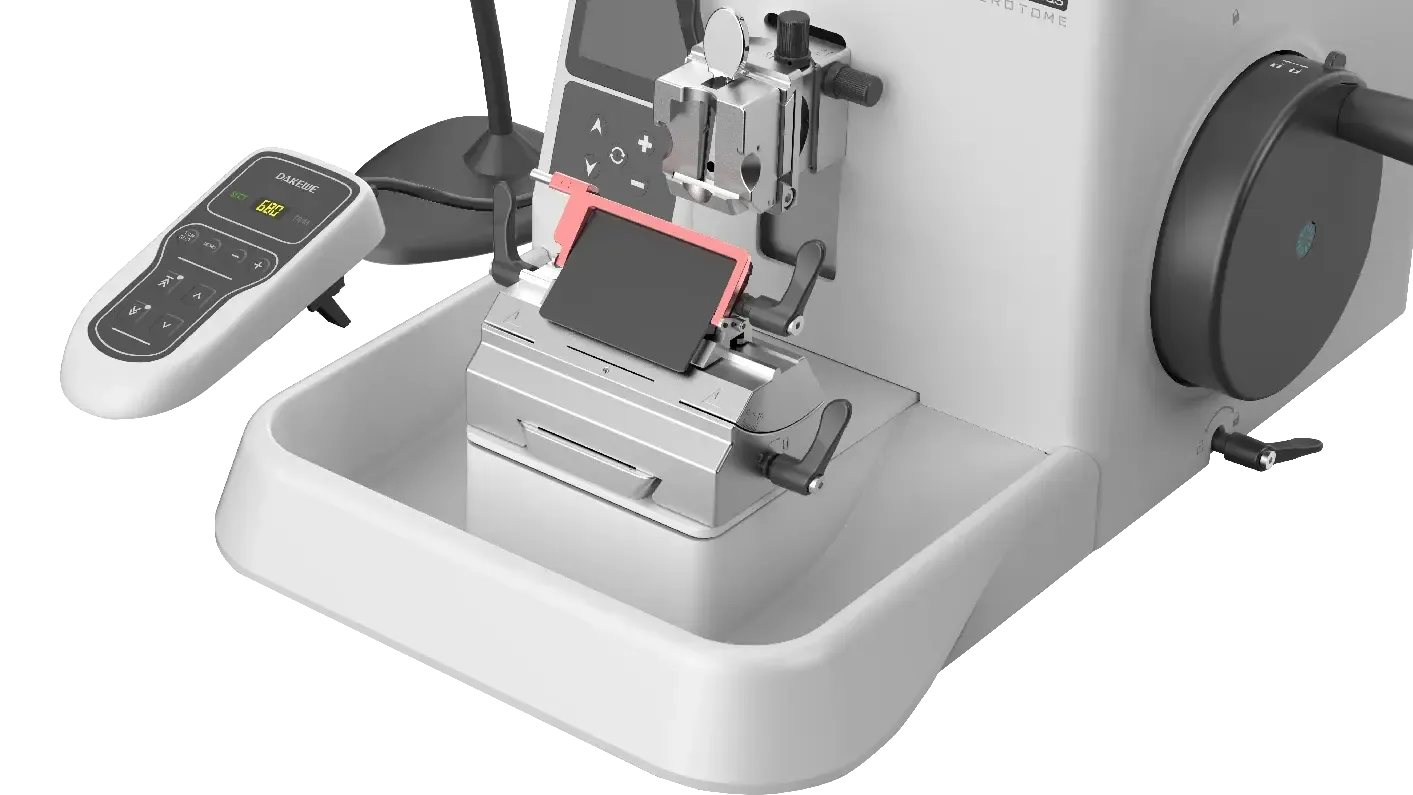

External control panel — External control panel can be placed on either side of the microtome
Engineered mechanisms — Ultra-precise, sleek rail with cross roller bearings and force balance system bring ultimate sectioning experience and reliability.
Dovetail groove blade holder base guarantees stable, wobbling-free operation.
Fine step angle stepper motor provides precise sectioning.
Enlighten the laboratory — Two appearances available to enlighten the laboratory with a bit of color and art.
| Dimension (W × D × H) | 490 × 570 × 306 mm |
|---|---|
| Weight | Approx. 38 kg |
| Power | 100 - 240 VAC, 50/60 Hz |
| Maximum consumption | 50 VA |
| Control panel | Built-in and external |
| Watse tray | Anti-static |
| Section thickness range | 0.5 - 100 μm |
| Trimming thickness range | 1 - 600 μm |
| Blade holder | High and low profile |
| Retraction | Adjustable |
